Precision Paper Dispensing Take-up For Sale
Take up machine is one of the key product independently researched and developed product by Enhancing Technology, it has the advantages of high speed, precision and fully automatic, and has a wide range of applications at home and abroad.
φ High precision φ High efficiency φ Automatic
Enhancing Technology Co., Ltd. is a leading company for metal precision cold rolling technology. We are dedicated to wire forming technology and process development, and is committed to promoting the application of ultra-precision cold rolling technology in a wide range of industries.
Take up machine is one of the key product independently researched and developed product by Enhancing Technology, it has the advantages of high speed, precision and fully automatic, and has a wide range of applications at home and abroad.
- Customized Design According to Customer Requirements
- I-wheel for blank stripping
- Arrangement pitch can be set

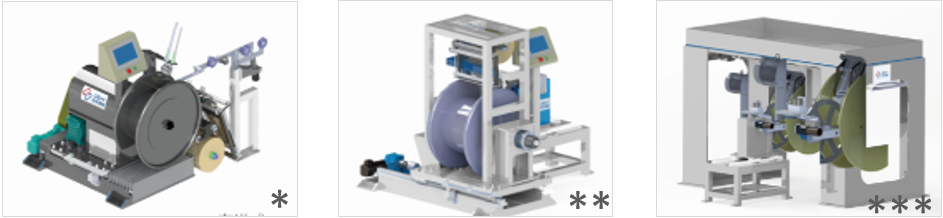

| Parameter | Cantilever * | Double center ** | Gantry *** |
| I wheel max. diameter | Φ750mm | Φ950mm | Φ1200mm |
| I wheel max. width | 260mm | 550mm | 650mm |
| Max. take-up speed | 90m/min | 160m/min | 300m/min |
| Max. take-up weight | 500KG | 1000KG | 2000KG |
| Wiring precision | ±0.3mm | ±0.2mm | ±0.2mm |
| Take-up direction | Right-in/Left-in | Right-in/Left-in | Right-in/Left-in |
| Tack-up type | Forward | Forward/Reverse | Forward/Reverse |
| Total power （KW） | 3 | 4.5 | 7.5 |
| L*W*H (mm) | 1500*1300*1500 | 1750*1850*1600 | 2800*2200*1800 |

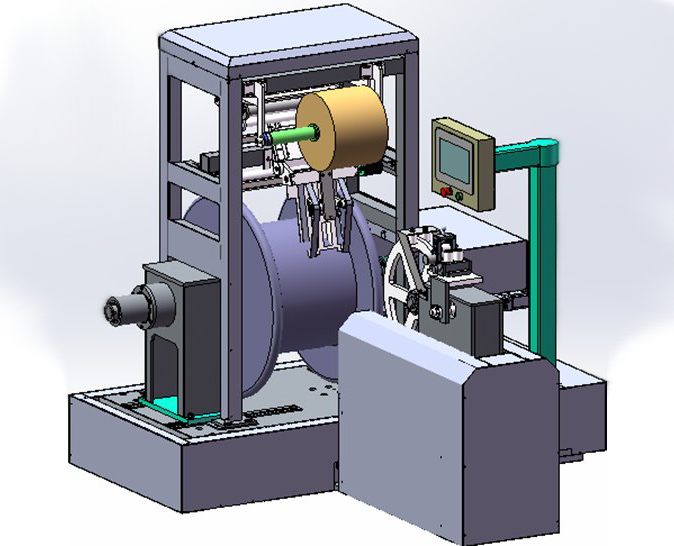

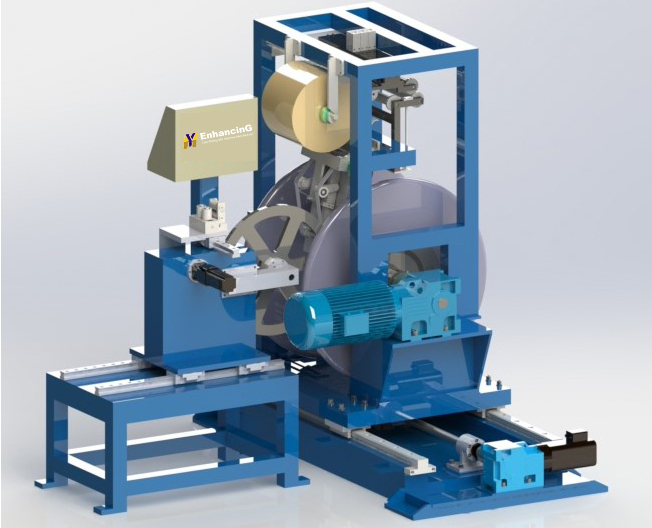

Precision Paper Despensing Take-up Machine is used for wire take-up and coiling. It is divided into three types: cantilever type, double-pin type and gantry type. It can automatically pad paper while precise take-up, protect the surface quality of wire, and realize high-efficiency operation without human being. It is widely used in automotive parts, new energy, electrical and electronic industries and textile industries.
Feature:
- Paper despensing take-up speed can reach 60 m/min.
- Using computer algorithm.
- The wire arrangement accuracy can reach +/-0.3 mm.
- Multi-functional paper cushion, automatic fixed length paper cutting, paper feeding, can realize the operation requirements of layer paper cushion or interlayer paper cushion.
- High intelligence, automatic fault recording, paper jamming, paper breakage and paperless automatic alarm, can be configured with remote management system.

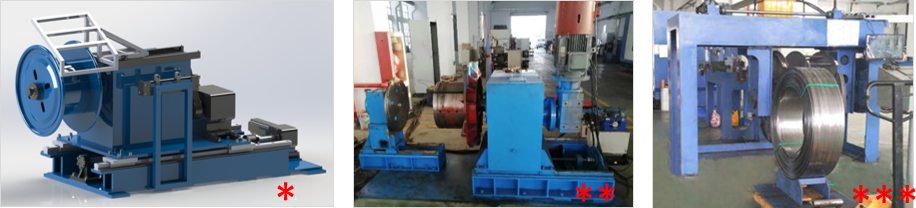

| Parameter | Cantilever * | Double center ** | Gantry *** |
| I wheel max. diameter | Φ750mm | Φ850mm | Φ1000mm |
| I wheel max. width | 220mm | 450mm | 550mm |
| Max. take-up speed | 60m/min | 60m/min | 300m/min |
| Max. take-up weight | 500KG | 1000KG | 2000KG |
| Wiring precision | ±0.3mm | ±0.2mm | ±0.2mm |
| Take-up direction | Right-in/Left-in | Right-in/Left-in | Right-in/Left-in |
| Tack-up type | Forward | Forward/Reverse | Forward/Reverse |
| Total power （KW） | 3 | 4.5 | 7.5 |
| L*W*H (mm) | 1500*1300*1500 | 1750*1850*1600 | 2800*2200*1800 |
